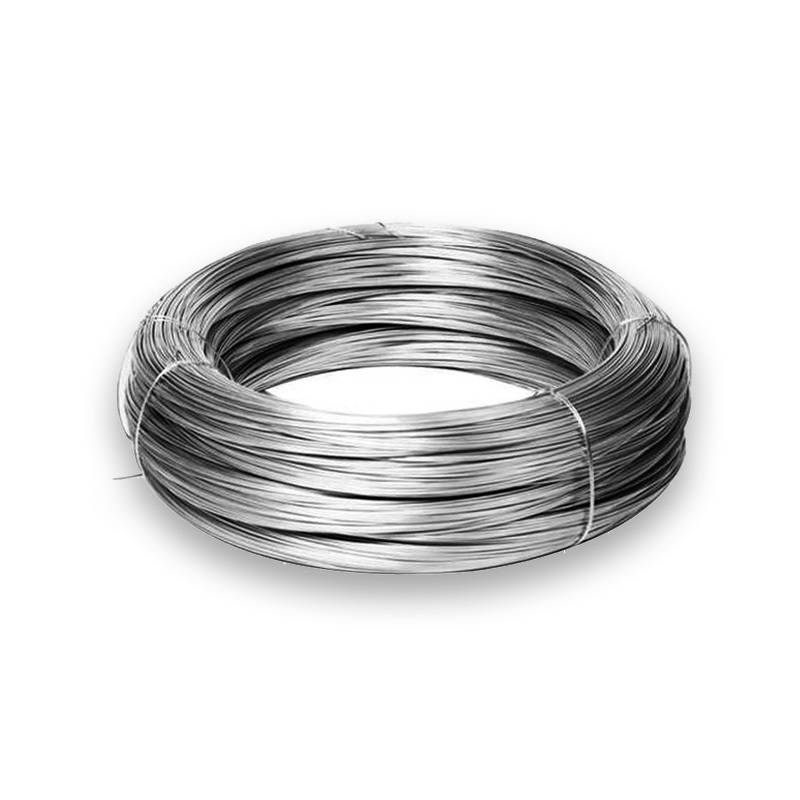

SAE-1008 Steel Wire Rod

Steel grade G10080 (SAE 1008) - low carbon material from which wire rod and round wire are produced in riots or cut rods. Standart: ASTM A510M. Standard specification for general requirements for carbon steel wire rod and round wire. Classification: Low-carbon steel.

Commodity name： SAE-1008 Steel Wire Rod

Category:

Wire Rod

Email: make@shoukunmetal.com Whatsapp: +86-19963513460

SAE-1008 Steel Wire Rod Description

SAE-1008 Wire Rod Specification
Nominal Diameter (mm)	Permissible Deviation (mm)	Nominal Cross Section (mm2)
Nominal Diameter (mm)	Permissible Deviation (mm)	Nominal Cross Section (mm2)	Nominal Weight (kg/m)	Permissible out – of Roundness(mm)
5.5	-/+ 0.3	0.238	0.186	0.48
6.0	-/+ 0.3	0.283	0.222
6.5	-/+ 0.3	0.332	0.260
7.0	-/+ 0.4	0.385	0.302	0.64
(*)8.0	-/+ 0.4	0.503	0.395
(**)10.0	-/+ 0.4	0.785	0.617
(**)12.0	-/+ 0.4	1.131	0.888
(**)14.0	-/+ 0.4	1.539	1.208
(**)16.0	-/+ 0.5	2.011	1.578	0.80

SAE-1008 Wire Rod Chemical Composition
Grade	C% (max)	Mn%	Si% (max)	S% (max)	P% (max)	Cr% (max)	Ni% (max)	Cu% (max)
SAE 1008	0.09	0.30-0.50	0.10	0.030	0.020	0.15	0.15	0.25

Scope of Application

Steel wire is widely used in the manufacture of many wire products.

Packing and delivery

Our main products are stainless steel plates, tube, coils, carbon steel plates, coils, tube, metal rope, color coating plate, coil, steel rod, aluminum plate, coil, etc. Our market is global, and has established business links with hundreds of countries and regions such as Europe, Southeast Asia, Africa and the Middle East.

Factory Strength

Iron and steel companies with more than ten years of experience.

Rich Inventory

Factory inventory is sufficient and rich in steel.

APPLICATION FIELD

We adhere to the principle of "customer first, quality first" and provide customers with high-quality products and satisfactory services. Provide customers with the best services in production, packaging, delivery, quality assurance, etc., and provide customers with one-stop procurement.
