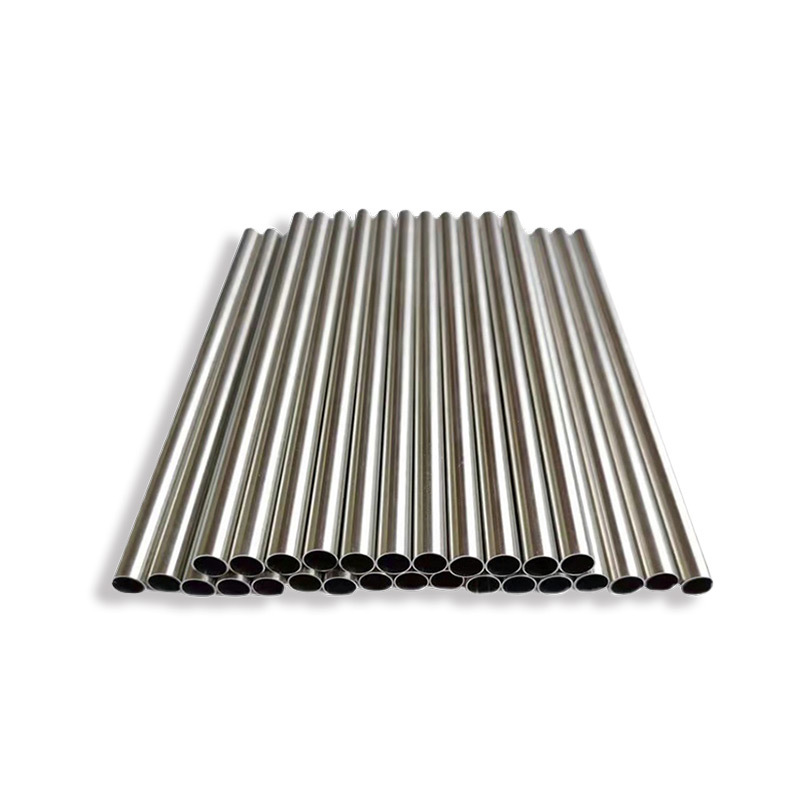

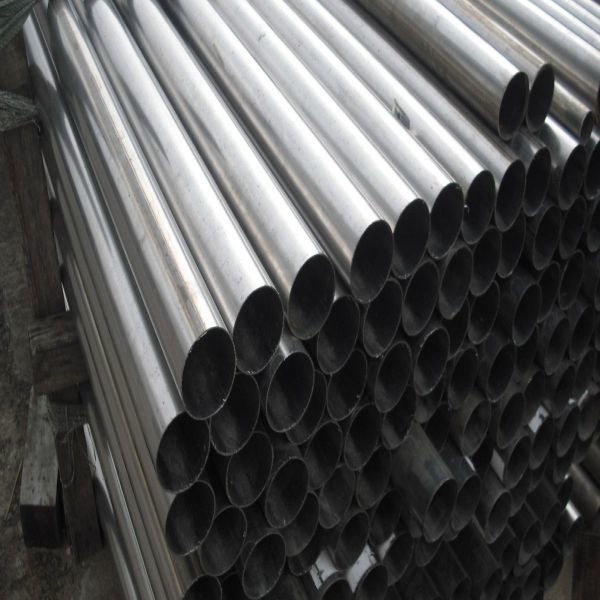

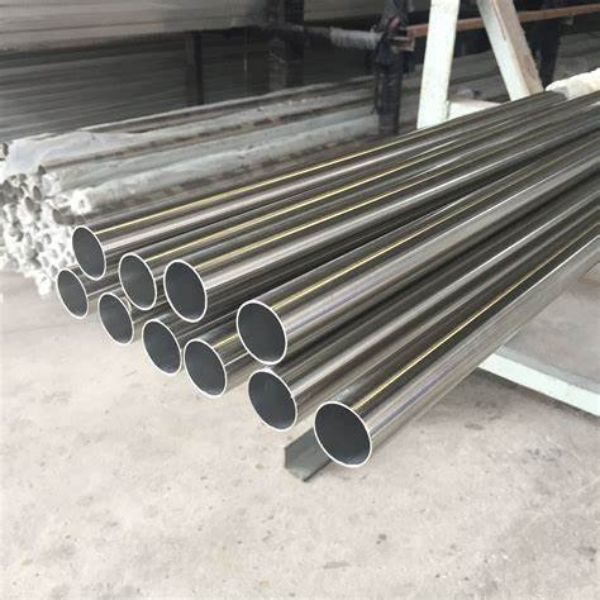

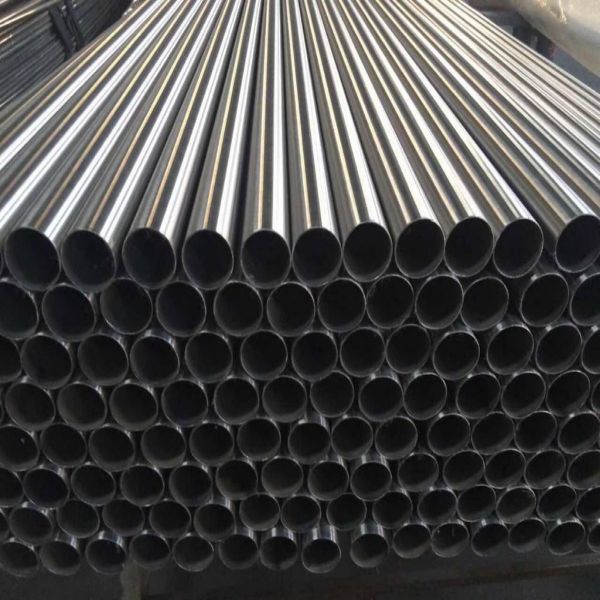

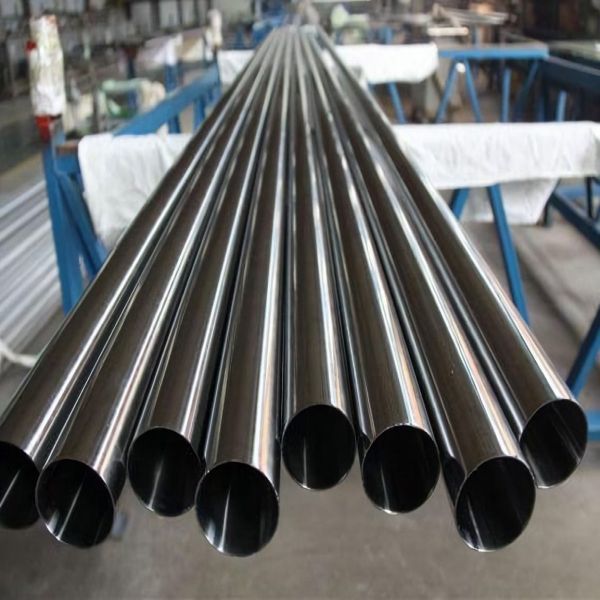

304 Stainless Steel Pipe

304 stainless steel is a kind of universal stainless steel material, rust resistance than 200 series of stainless steel material is stronger. High temperature resistance is also better, can be as high as 1000-1200 degrees. 304 stainless steel has excellent corrosion resistance and good intergranular corrosion resistance. For oxidizing acids, it is concluded in the experiment that 304 stainless steel has strong corrosion resistance in nitric acid with a concentration of less than or equal to 65% of the boiling temperature. It also has good corrosion resistance to alkali solution and most organic and inorganic acids.

Commodity name： 304 Stainless Steel Pipe

Category:

Stainless Steel Pipe

Email: make@shoukunmetal.com Whatsapp: +86-19963513460

304 Stainless Steel Pipe Description

Product Parameters

Product Name		304 Stainless Steel Pipe
Type		Steel Pipe
Outer diameter	Round Tube	4mm-200mm
	Square Tube	1010mm-100100mm
	Rectangular Tube	1020mm-50100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.
Scope of Application		Common applications for stainless steel pipes include food processing, Textile operations, Breweries, Water treatment plants, Oil and gas processing, Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc.
Certificate		ISO, SGS, BV, etc.
Production Technology		Hot Rolling, Cold Rolling
Edge Processing		Edging, Trimming

Chemical Composition

C	Si	Mn	Cr	Ni	S	P
≤ 0.08	≤1.0	≤ 2.0	18.0～20.0	8.0～10.5	≤ 0.03	≤ 0.035

Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥ 520	≥ 205	≥ 40	≤ 187HB ;≤ 90HRB;≤ 200HV

Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10^-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
8.03	193	16.9	16.2	72

Packing and delivery

Our main products are stainless steel plates, tube, coils, carbon steel plates, coils, tube, metal rope, color coating plate, coil, steel rod, aluminum plate, coil, etc. Our market is global, and has established business links with hundreds of countries and regions such as Europe, Southeast Asia, Africa and the Middle East.

Factory Strength

Iron and steel companies with more than ten years of experience.

Rich Inventory

Factory inventory is sufficient and rich in steel.

APPLICATION FIELD

We adhere to the principle of "customer first, quality first" and provide customers with high-quality products and satisfactory services. Provide customers with the best services in production, packaging, delivery, quality assurance, etc., and provide customers with one-stop procurement.
