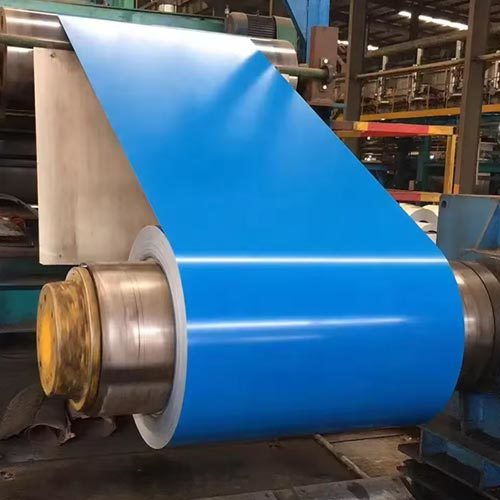

Color Coated Galvalume Steel Coil PPGL

PPGL steel is a durable, colorful and economical building material. It is the abbreviation of color coated aluminum-zinc plated steel plate, which is based on aluminum-zinc plated steel plate. The aluminum-zinc coated steel is then continuously painted in coil form. Due to its heat resistance and corrosion resistance, it has become a material for various construction purposes, especially roofs and walls.

Commodity name： Color Coated Galvalume Steel Coil PPGL

Category:

Color Coated Coil

Email: make@shoukunmetal.com Whatsapp: +86-19963513460

Color Coated Galvalume Steel Coil PPGL Description

Product Parameters

Product Name	Color Coated Galvalume Steel Coil PPGL
Thickness	0.13mm-0.8mm
Width	600mm-1250mm
Length	Support Customization
Color	According RAL Color Card (Can provide custom pattern)
Paint	PE, SMP, HDP, PVDF
Primer	Epoxy primer, Polyester primer, Water soluble acrylic primer, Polyurethane primer
Coating Thickness	Top Coat: 10-30mic, Back Paint: 5-25mic

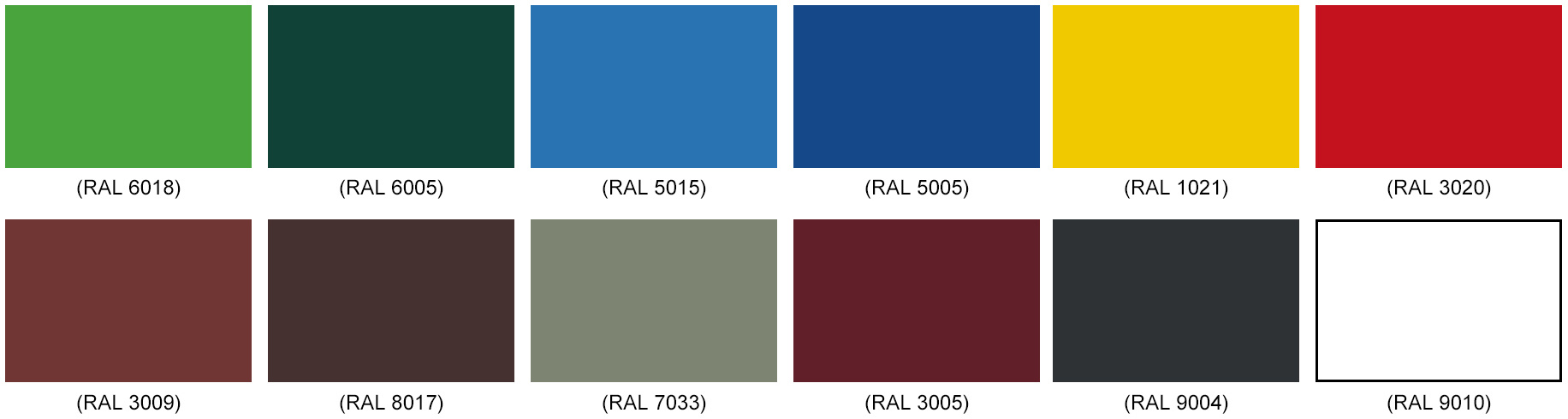

Color Selection

We provide many colors to choose from, the following are common colors, if you like other colors or patterns, please send us the RAL color code.

PPGL Color Coated Coil Advantages

Excellent Corrosion Resistance
Because it contains 55% aluminum, the corrosion resistance of PPGL is much better than that of PPGI, which can greatly extend the service life.
Good Heat Reflectivity
Good heat resistance can keep the building cool in the hot summer.
Weather Resistance
Pre-coated aluminum-zinc steel can withstand severe weather conditions, such as extreme summer, winter or rainfall.
Good Processing Performance
PPGL steel plate is easy to shear, profiling, blanking and other processing.
Beautiful Appearance
They have a pleasing surface finish and aesthetics that look attractive and impressive.

Coating Type

In the coil coating, the durability of the role is the resin and pigment, the most commonly used finish polyester, silicon modified polyester, high durability polyester and polyvinylidene fluoride.
Polyester PE
Good adhesion, rich color, wide range in formability and outdoor durability, medium chemical resistance, low cost.
Silicon Modified Polyester Smp
The hardness, abrasion resistance and heat resistance of the coating film are good; as well as good external durability and powder resistance, gloss retention, general flexibility and medium cost.
High Durability Polyester HDP
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, good film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride PVDF
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good formability, dirt resistance, limited color, and high cost.

Scope of Application

Construction industry: such as roof, interior and exterior wall panels, balcony panels, suspended ceilings, partition walls, windows, door panels, etc.
Transportation: For example, car trim panels, train or ship decks, containers, etc.
Electrical equipment: mainly used for making freezers, washing machines, air conditioners and other enclosures. PPGI coils for home appliances have the best quality and the highest production requirements.
Furniture: such as wardrobes, lockers, radiators, lampshades, tables, beds, bookcases, shelves, etc.
Other industries: such as roller shutters, billboards, traffic signs, elevators, whiteboards, etc.

Packing and delivery

Our main products are stainless steel plates, tube, coils, carbon steel plates, coils, tube, metal rope, color coating plate, coil, steel rod, aluminum plate, coil, etc. Our market is global, and has established business links with hundreds of countries and regions such as Europe, Southeast Asia, Africa and the Middle East.

Factory Strength

Iron and steel companies with more than ten years of experience.

Rich Inventory

Factory inventory is sufficient and rich in steel.

APPLICATION FIELD

We adhere to the principle of "customer first, quality first" and provide customers with high-quality products and satisfactory services. Provide customers with the best services in production, packaging, delivery, quality assurance, etc., and provide customers with one-stop procurement.
