A572/S355JR Carbon Steel Bar

A572 steel bars are lightweight, but have good strength, ductility and workability, making them ideal for structural applications. These characteristics make the A572 relatively simple to shape into different structures, while maintaining the ability to withstand large stresses and loads.

Commodity name： A572/S355JR Carbon Steel Bar

Category:

Carbon Steel Bar

Email: make@shoukunmetal.com Whatsapp: +86-19963513460

A572/S355JR Carbon Steel Bar Description

Product Parameters

Product Name	A572/S355JR Carbon Steel Bar
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI, etc.
Common Round Bar Specifications	3.0-50.8 mm, Over 50.8-300mm
Flat Steel Common Specifications	6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm
Hexagon Bar Common Specifications	AF5.8mm-17mm
Square Bar Common Specifications	AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm
Length	1-6meters, Size Accept Custom
Diameter(mm)	Hot Rolling Round Bar	25-600	Cold Rolling Square Bar	6-50.8
	Hot Rolling Square Bar	21-54	Cold Rolling Hexagon Bar	9.5-65
	Cold Rolling Round bar	6-101.6	Forged Rebar	200-1000
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition

A572	C	Mn	P	S	Si
Grade42	0.21	1.35	0.03	0.03	0.15~0.4
Grade50	0.23	1.35	0.03	0.03	0.15~0.4
Grade60	0.26	1.35	0.03	0.03	0.40
Grade65	0.23~0.26	1.35~1.65	0.03	0.03	0.40

Mechanical Properties

A572	Yield Strength(Ksi)	Tensile Strength(Ksi)	Elongation % 8inches
Grade42	42	60	20
Grade50	50	65	18
Grade60	60	75	16
Grade65	65	80	15

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80g/cc	0.282 lb/in³

Scope of Application

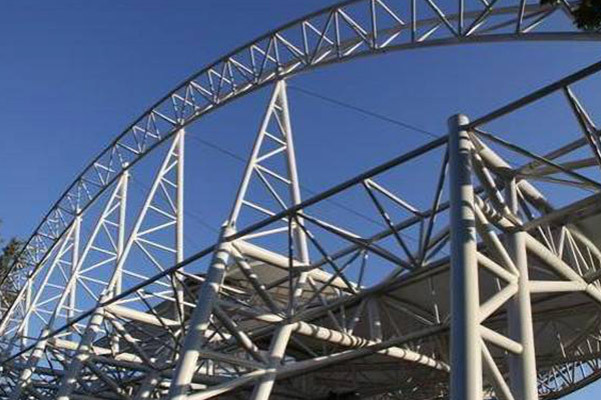

ASTM A572 carbon steel low-alloy steel is widely used as bridge panels, support plates, mechanical mounting plates, etc. for construction equipment, transmission towers, racks and other equipment.

Equivalent Material

EU	German Standard	Japanese Standard	French Standard	British Standard	Canada	Italy	Spain	National Standard	International	Portugal	India
EN	DIN,WNr	JIS	AFNOR	BS	HG	UNI	UNE	GB	ISO	NP	IS
S355JR	St52-3	SM490A	E36-2	50B	350W	Fe510B	AE355B	Q345B	E355C	FE510-B	IS961

USA	Japan	Germany		U.K.		France	Italy	Spain	Switzerland	China
AISI/SAE	JIS	W‐nr.	DIN	BS	EN	AFNOR	UNI	UNE	SS	GB
A570.36	STKM 12A	1.0038	RSt.37‐2	4360	‐	E 24‐2	‐	‐	1311	15
-	STKM 12C	-	-	40 C	-	Ne	-	-	-	-
1015	‐	1.0401	C15	080M15	‐	CC12	C15, C16	F.111	1350	15
1020	‐	1.0402	C22	050A20	2C	CC20	C20, C21	F.112	1450	20
1213	SUM22	1.0715	9SMn28	230M07	1A	S250	CF9SMn28	F.2111	1912	Y15
1213	SUM22	1.0715	9SMn28	230M07	1A	S250	CF9SMn28	11SMn28	1912	Y15
12L13	SUM22L	1.0718	9SMnPb28	‐	‐	S250Pb	CF9SMnPb28	11SMnPb28	1914	‐
‐	‐	1.0722	10SPb20	‐	‐	10PbF2	CF10Pb20	10SPb20	‐	‐
1215	‐	1.0736	9SMn36	240M07	1B	S300	CF9SMn36	12SMn35	‐	Y13
12L14	‐	1.0737	9SMnPb36	‐	‐	S300PB	CF9SMnPb36	12SMnP35	1926	‐
1015	S15C	1.1141	Ck15	080M15	32C	XC12	C16	C15K	1370	15
1025	S25C	1.1158	Ck25	‐	‐	‐	‐	‐	‐	25
A572-60	‐	1.890	StE380	4360 55	‐	‐	FeE390KG	‐	2145	‐
1035	‐	1.0501	C35	060A35	‐	CC35	C35	F.113	1550	35
1045	‐	1.0503	C45	080M46	‐	CC45	C45	F.114	1650	45
1140	‐	1.0726	35S20	212M36	8M	35MF4	‐	F210G	1957	‐
1039	‐	1.1157	40Mn4	150M36	15	35M5	‐	‐	‐	40Mn
1335	SMn438(H)	1.1167	36Mn5	‐	‐	40M5	‐	36Mn5	2120	35Mn2
1330	SCMn1	1.1170	28Mn6	150M28	14A	20M5	C28Mn	‐	‐	30Mn
1035	S35C	1.1183	Cf35	060A35	‐	XC38TS	C36	‐	1572	35Mn
1045	S45C	1.1191	Ck45	080M46	‐	XC42	C45	C45K	1672	Ck45
1050	S50C	1.1213	Cf53	060A52	‐	XC48TS	C53	‐	1674	50
1055	‐	1.0535	C55	070M55	9	‐	C55	‐	1655	55
1060	‐	1.0601	C60	080A62	43D	CC55	C60	‐	‐	60
1055	S55C	1.1203	Ck55	070M55	‐	XC55	C50	C55K	‐	55
1060	S58C	1.1221	Ck60	080A62	43D	XC60	C60	‐	1678	60Mn
1095	‐	1.1274	Ck101	060A96	‐	XC100	‐	F.5117	1870	‐
W1	SK3	1.1545	C105W1	BW1A	‐	Y105	C36KU	F.5118	1880	‐
W210	SUP4	1.1545	C105W1	BW2	‐	Y120	C120KU	F.515	2900	‐

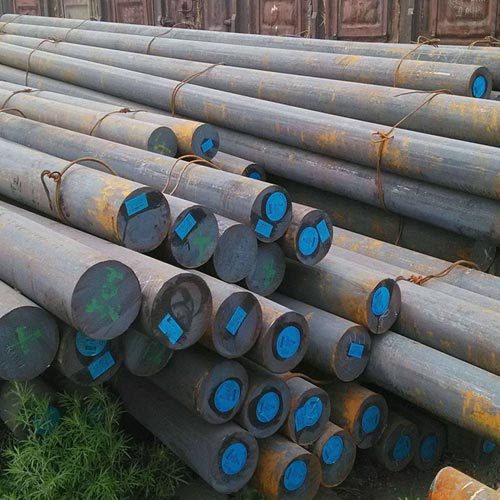

Packing and delivery

Our main products are stainless steel plates, tube, coils, carbon steel plates, coils, tube, metal rope, color coating plate, coil, steel rod, aluminum plate, coil, etc. Our market is global, and has established business links with hundreds of countries and regions such as Europe, Southeast Asia, Africa and the Middle East.

Factory Strength

Iron and steel companies with more than ten years of experience.

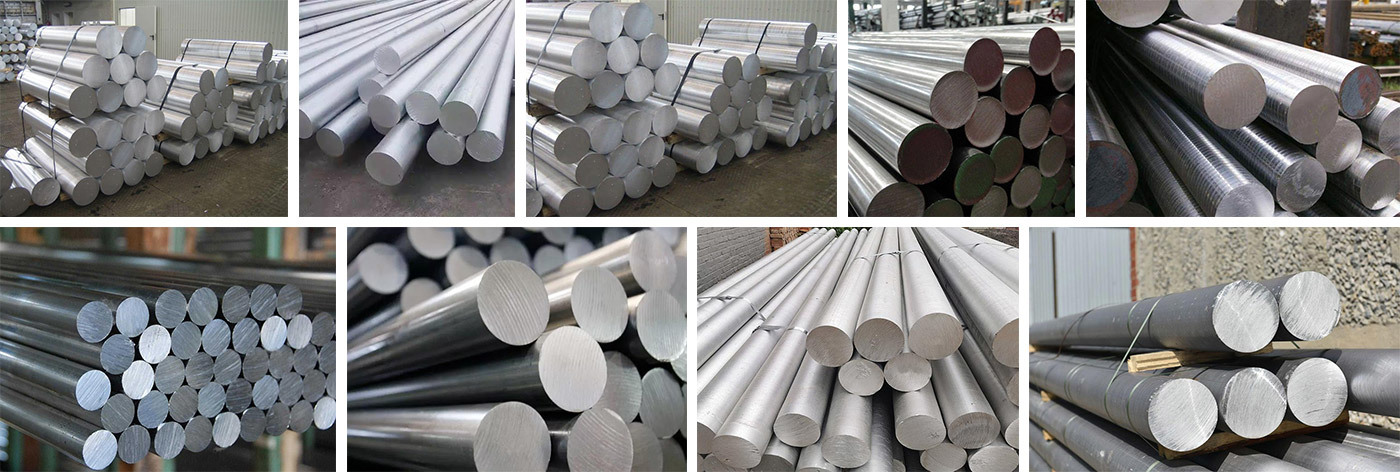

Rich Inventory

Factory inventory is sufficient and rich in steel.

APPLICATION FIELD

We adhere to the principle of "customer first, quality first" and provide customers with high-quality products and satisfactory services. Provide customers with the best services in production, packaging, delivery, quality assurance, etc., and provide customers with one-stop procurement.
